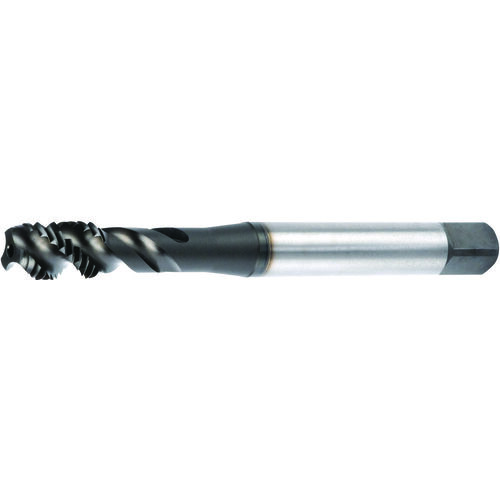

GT315004 M10X1.5 6HX RHSF 371 CH
Spiral Flute Tap; M10 × 1.5 mm ; 100 mm OAL ; 3 FL ; HSSCo-PM ; 6HX
Additional Tariff Surcharge of 8.5 %
| Thread Diameter Size (TDZ) | M10 | Cutting Edge Material | HSS-PM |
| Thread Pitch (TP) | 1.5 mm | Thread Tolerance Class (TCTR) | 6HX |
| Threads per Inch (TPI) | 17 | Standard | DIN371 |
| Thread Standard | Metric | Chamfer | 2P-3P |
| Overall Length (OAL) | 100 mm | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 15 mm | Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | Coolant Thru |
| Flute Helix Angle (FHA) | 45 Degrees | Square Size | 8 mm |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Metric |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.368
