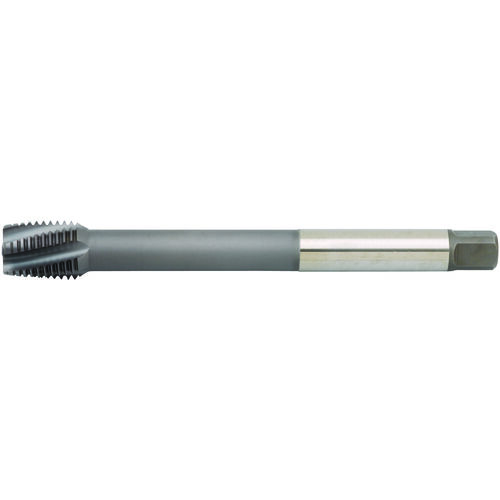

GT205122 M24X3 6H LH SF PLG X-LNG
Spiral Flute Tap; M24 × 3 mm ; 200 mm OAL ; 5 FL ; HSSCo-PM ; TiCN ; 6HX
Additional Tariff Surcharge of 8.5 %
| Thread Diameter Size (TDZ) | M24 | Cutting Edge Material | HSS-PM |
| Thread Pitch (TP) | 3 mm | Thread Tolerance Class (TCTR) | 6HX |
| Threads per Inch (TPI) | 8 | Chamfer | 3P-5P |
| Thread Standard | Metric | Coating | TiCN |
| Overall Length (OAL) | 200 mm | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 30 mm | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Cutting Direction (HAND) | Left Hand |
| Flute Count (NOF) | 5 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 15 Degrees | Square Size | 14.41 mm |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Metric |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.849
