GT205081 M8X1.25 6HX LH SF PLG 371

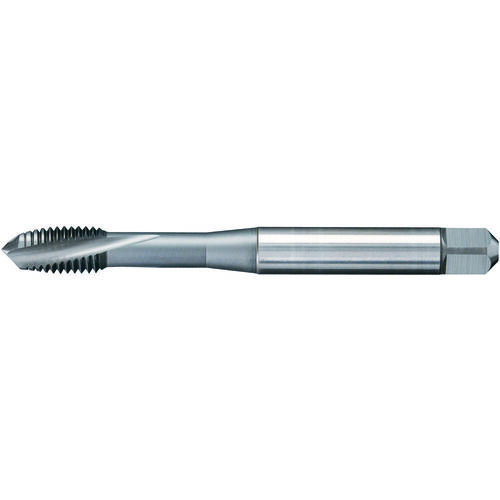

Spiral Flute Tap; M8 × 1.25 mm ; 90 mm OAL ; 3 FL ; HSSCo-PM ; 6HX
Additional Tariff Surcharge of 8.5 %
| Thread Diameter Size (TDZ) | M8 | Cutting Edge Material | HSS-PM |
| Thread Pitch (TP) | 1.25 mm | Thread Tolerance Class (TCTR) | 6HX |
| Threads per Inch (TPI) | 20 | Standard | DIN371 |
| Thread Standard | Metric | Chamfer | 3P-5P |
| Overall Length (OAL) | 90 mm | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 13 mm | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Direction (HAND) | Left Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 15 Degrees | Square Size | 6.2 mm |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Metric |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.3770
