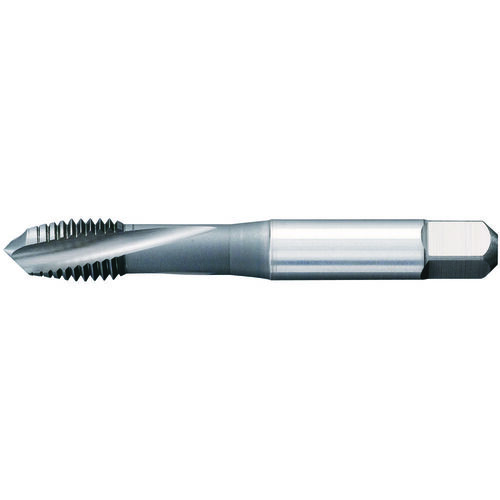

GT205069 M3X0.5 6HX LH SF PLUG
Spiral Flute Tap; M3 × 0.5 mm ; 492.76 mm OAL ; 2 FL ; HSSCo-PM ; TiCN ; 6HX
Additional Tariff Surcharge of 8.5 %
| Thread Diameter Size (TDZ) | M3 | Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 0.5 mm | Standard | ANSI |
| Threads per Inch (TPI) | 51 | Chamfer | 3P-5P |
| Thread Standard | Metric | Coating | TiCN |
| Overall Length (OAL) | 49.3 mm | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 16 mm | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 3.58 mm | Cutting Direction (HAND) | Left Hand |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 15 Degrees | Square Size | 2.74 mm |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Metric |
| Cutting Edge Material | HSS-PM |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.0245
