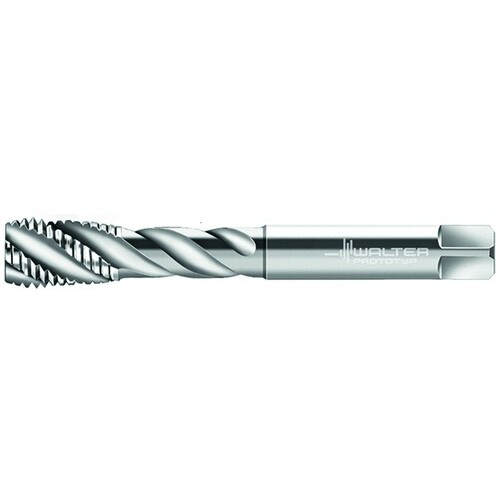

M9x1 6H 3 Flute HSS Bright Spiral Flute Tap
Spiral Flute Tap; M9 × 1 mm ; 92.07 mm OAL ; 3 FL ; HSS ; Uncoated ; 6H
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M9 | Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 1 mm | Standard | DIN 374 |
| Thread Standard | Metric | Coating | Uncoated |
| Overall Length (OAL) | 92.07 mm | Flute Length | 34 mm |
| Thread Cutting Part Length (THL) | 13 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 7 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|45 Degrees | Measurement Type | Metric |
| Cutting Edge Material | HSS |
Product Features
| Family Description | P21569-M9X1 | Country of Origin | Germany |
Shipping Info
Package Weight
0.066
