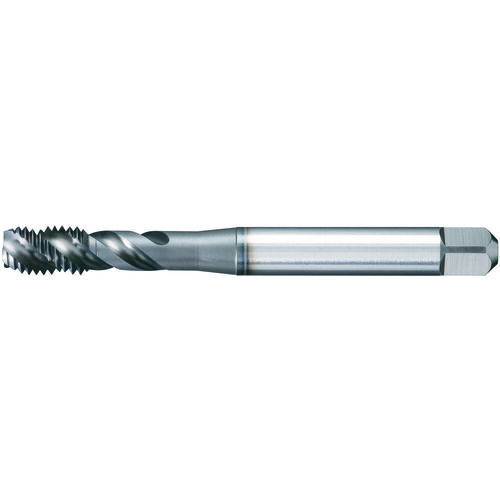

VTSFT6587 M12 × 1.5 ISO2 6H 3F
| Thread Diameter Size (TDZ) | M12 | Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 1.5 mm | Standard | DIN374 |
| Thread Standard | Metric | Chamfer | 1P-2P |
| Overall Length (OAL) | 100 mm | Coating | Oxide |
| Thread Cutting Part Length (THL) | 21 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 9 mm | Style | Bottoming |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | Steel | Square Size | 7 mm |
| Cutting Edge Material | HSSCo | Measurement Type | Metric |
Product Features
| Country of Origin | DE |
Shipping Info
Package Weight
.0965
