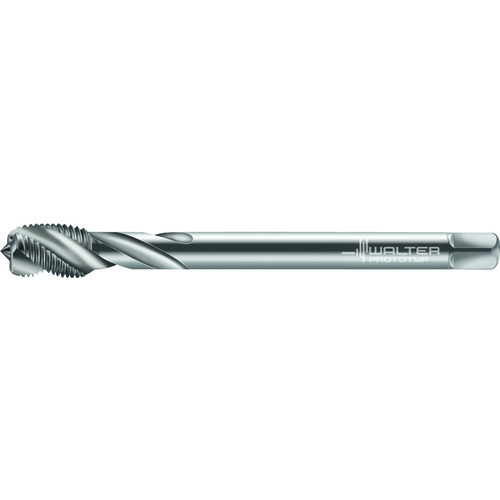

M26x1.5 6H 5 Flute HSS Bright Spiral Flute Tap
Spiral Flute Tap; M26 × 1.5 mm ; 140 mm OAL ; 5 FL ; HSS ; Uncoated ; 6H
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M26 | Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 1.5 mm | Standard | DIN 374 |
| Thread Standard | Metric | Coating | Uncoated |
| Overall Length (OAL) | 140 mm | Flute Length | 72 mm |
| Thread Cutting Part Length (THL) | 20 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 5 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|45 Degrees | Measurement Type | Metric |
| Cutting Edge Material | HSS |
Product Features
| Family Description | 7156770-M26X1.5 | Country of Origin | Germany |
Shipping Info
Package Length
5.00000
Package Width
1.00000
Package Height
1.00000
Package Weight
0.574
