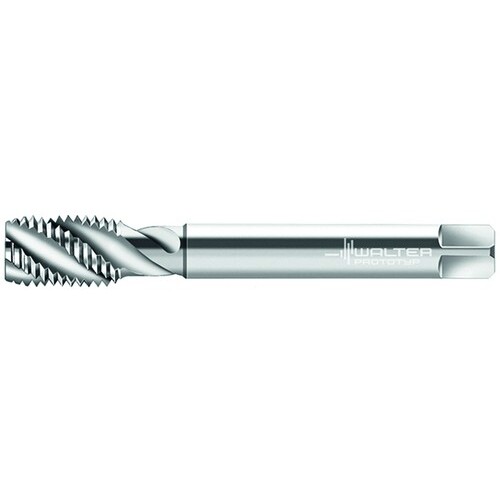

1-3/8-12 UNF 2B 5 Flute HSS Bright Spiral Flute Ta
Spiral Flute Tap; 1-3/8″ - 12 ; 6-11/16″ OAL ; 5 FL ; HSS ; Uncoated ; 2B
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 1-3/8″ | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 12 | Standard | DIN 2184-1 |
| Thread Standard | NF | Coating | Uncoated |
| Overall Length (OAL) | 6-11/16″ | Flute Length | 3-15/64″ |
| Thread Cutting Part Length (THL) | 55/64″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 1.102″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 5 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|45 Degrees | Measurement Type | Inch |
| Cutting Edge Material | HSS |
Product Features
| Family Description | P23569-UNF1.3/8 | Country of Origin | Germany |
Shipping Info
Package Weight
1.59
