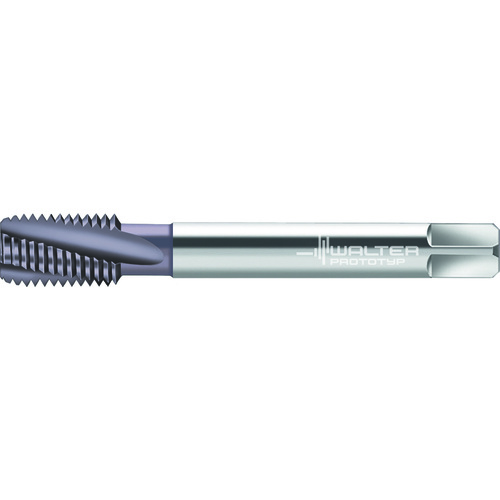

M20x2.5 6HX 4 Flute HSS ACN Spiral Flute Tap
Spiral Flute Tap; M20 × 2.5 mm ; 140 mm OAL ; 4 FL ; HSS ; TiAlN ; 6HX
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M20 | Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 2.5 mm | Standard | DIN 376 |
| Thread Standard | Metric | Coating | TiAlN |
| Overall Length (OAL) | 140 mm | Flute Length | 46 mm |
| Thread Cutting Part Length (THL) | 30 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|15 Degrees | Measurement Type | Metric |
| Cutting Edge Material | HSS |
Product Features
| Family Description | 2046663-M20 | Country of Origin | Germany |
Shipping Info
Package Weight
0.464
