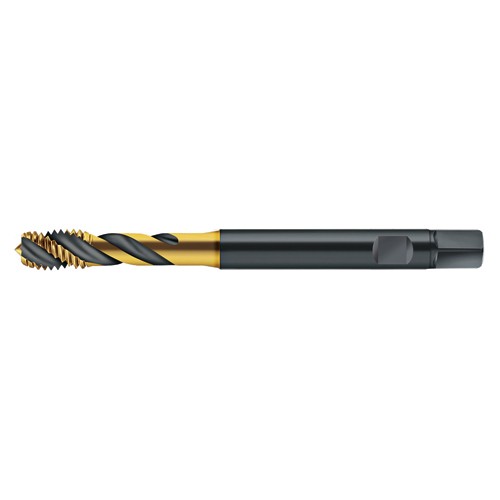

M10x1.5 6H 3 Flute HSS TiN/VAP Synchrospeed Machin
Spiral Flute Tap; M10 × 1.5 mm ; 100 mm OAL ; 3 FL ; HSS ; TiN ; 6HX
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M10 | Cutting Edge Material | HSS |
| Thread Pitch (TP) | 1.5 mm | Thread Tolerance Class (TCTR) | 6HX |
| Thread Standard | Metric | Standard | DIN 371 |
| Overall Length (OAL) | 100 mm | Coating | TiN |
| Thread Cutting Part Length (THL) | 16 mm | Flute Length | 34 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | Coolant Thru |
| Flute Helix Angle (FHA) | CW|40 Degrees | Measurement Type | Metric |
Product Features
| Family Description | S2051315-M10 | Country of Origin | India |
Shipping Info
Package Weight
0.113
