M16x2.0 6H 3FL V-COATING

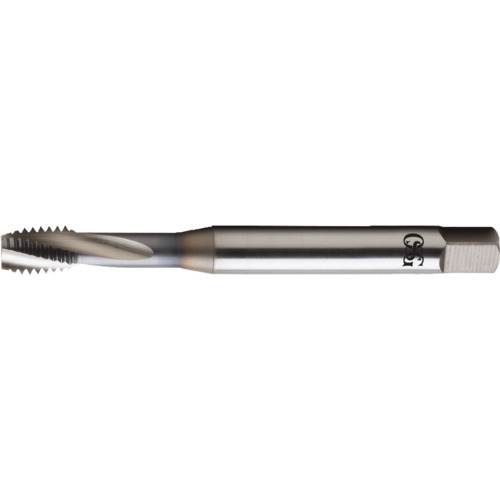

Spiral Flute Tap; M16 × 2 mm ; 110 mm OAL ; 3 FL ; HSSCo ; TiCN ; 6H ; Series 13113
| Thread Diameter Size (TDZ) | M16 | Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 2 mm | Tool Type | High Performance Tap |
| Thread Standard | Metric | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 110 mm | Coating | TiCN |
| Thread Cutting Part Length (THL) | 1-13/16″ | Flute Type | Spiral |
| Usable Length (LU) | 54 mm | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 12.19 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Series/List # | 13113 |
| Cutting Edge Material | HSSCo |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.95000
Package Width
.90000
Package Height
.85000
Package Weight
0.194
