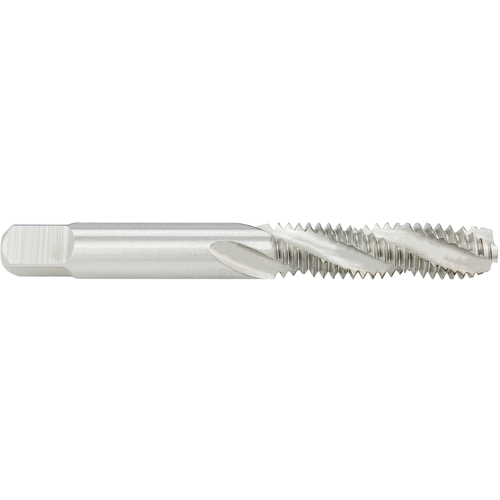

12-24 Dia-2 FL-Bright HSS-Std Spiral FL Tap
Spiral Flute Tap; #12 - 24 ; 2-1/2″ OAL ; 2 FL ; HSS ; Uncoated
| Thread Diameter Size (TDZ) | #12 | Flute Helix Angle (FHA) | 30 Degrees |
| Threads per Inch (TPI) | 24 | Cutting Edge Material | HSS |
| Thread Standard | NC | Tool Type | General Purpose Tap |
| Overall Length (OAL) | 2-1/2″ | Coating | Uncoated |
| Thread Cutting Part Length (THL) | 15/16″ | Flute Type | Spiral |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
Product Features
| Remarks | •Spiral Fluted Taps •High Speed Steel Ground Thread •Recommended for use in ductile materials such as Brass, Copper, Aluminum, Magnesium and die cast materials. •Excellent for tapping blind holes where chips are a problem. •These taps propel chips upward, out and away thus producing finer thread quality. • Spiral Flutes will also bridge a keyway or other gap in the hole | Country of Origin | China |
Shipping Info
Package Weight
0.028
