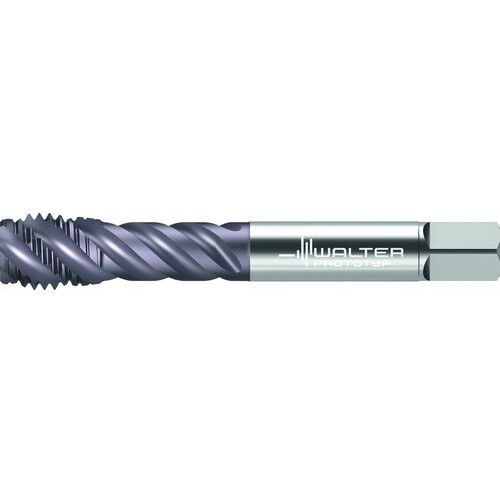

1/2″-13 UNC 2BX 3 Flute HSS-E-PM TiAlN Modified Bottoming Spiral Flute Tap
Spiral Flute Tap; 1/2″ - 13 ; 110 mm OAL ; 3 FL ; HSSE-PM ; TiAlN ; 2BX
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 1/2″ | Thread Tolerance Class (TCTR) | 2BX |
| Threads per Inch (TPI) | 13 | Chamfer | Modified Bottom |
| Thread Standard | UNC | Coating | TiAlN |
| Overall Length (OAL) | 110 mm | Flute Length | 39 mm |
| Usable Length (LU) | 82 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.367″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 50 Degrees | Grade | WW60RB |
| Applicable Material | | Steel | Stainless Steel | | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSSE-PM |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.031
