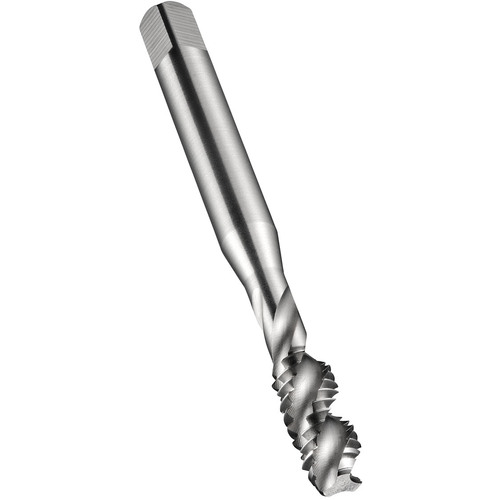

3/8-20 HSS 3 Flute Medium 40 Degree Machine Tap Spiral Flute-Steam Oxide E-code # E5383/8
Spiral Flute Tap; 3/8″ - 20 ; 3 FL ; HSS ; Black Oxide ; Medium ; Series E538
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 3/8″ | Chamfer | 2P-3P |
| Threads per Inch (TPI) | 20 | Coating | Black Oxide |
| Thread Standard | BSF | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Style | Semi-Bottoming |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 40 Degrees | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS | Length Group | 2xD |
| Thread Tolerance Class (TCTR) | Medium | Measurement Type | Inch |
| Standard | ISO 529 | Series/List # | E538 |
| Tool Type | Machine Tap |
Product Features
| Family Description | E-code # E5383/8 | Country of Origin | Brazil |
Shipping Info
Package Weight
1.444
