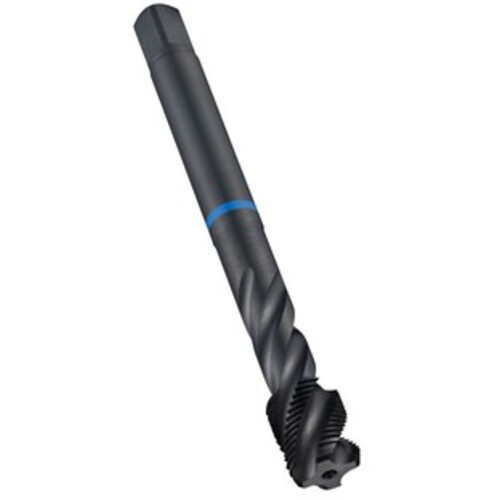

M16x1.5 HSS-E PM 5 Flute 6H 40 Degree Blue Shark Machine Tap Spiral Flute-Steam Oxide E-code # E383M16X1.5
Spiral Flute Tap; M16 × 1.5 mm ; 100 mm OAL ; 5 FL ; HSSE-PM ; Black Oxide ; 6H ; Series E383
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M16 | Tool Type | Machine Tap |
| Thread Pitch (TP) | 1.5 mm | Chamfer | 2P-3P |
| Thread Standard | M | Coating | Black Oxide |
| Overall Length (OAL) | 100 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Style | Semi-Bottoming |
| Flute Count (NOF) | 5 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 40 Degrees | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE-PM | Length Group | 2xD |
| Thread Tolerance Class (TCTR) | 6H | Measurement Type | Metric |
| Special Feature | Blue Shark | Series/List # | E383 |
| Standard | DIN 374 |
Product Features
| Family Description | E-code # E383M16X1.5 | Country of Origin | India |
Shipping Info
Package Weight
1.383
