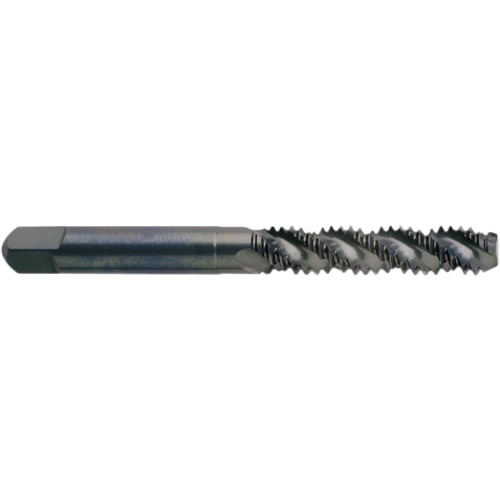

Spiral Flute Tap; #10 - 32 ; 2.38″ OAL ; 3 FL ; HSSE-V3 ; TiN ; H3 ; Series C4
Spiral Flute Tap; #10 - 32 ; 2.38″ OAL ; 3 FL ; HSSE-V3 ; TiN ; H3 ; Series C4
| Thread Diameter Size (TDZ) | #10 | Chamfer | 1.5P-2P |
| Threads per Inch (TPI) | 32 | Coating | TiN |
| Thread Standard | UNF | Shank Type | Square |
| Overall Length (OAL) | 2.38″ | Flute Type | Spiral Flute |
| Thread Cutting Part Length (THL) | 0.88″ | End Shape | Bottoming |
| Usable Length (LU) | 0.88″ | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Length Group | 2.5xD |
| Flute Count (NOF) | 3 | Square Size | 0.152″ |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Wire Gauge |
| Cutting Edge Material | HSSE-V3 | Tapping Prehole Diameter (Pre-hole) | 0.1616″ |
| Thread Tolerance Class (TCTR) | H3 | Series/List # | C4 |
| Standard | 302 | Thread Size | #10 - 32 |
| Tool Type | General Purpose |
Product Features
| Country of Origin | S.Korea |
