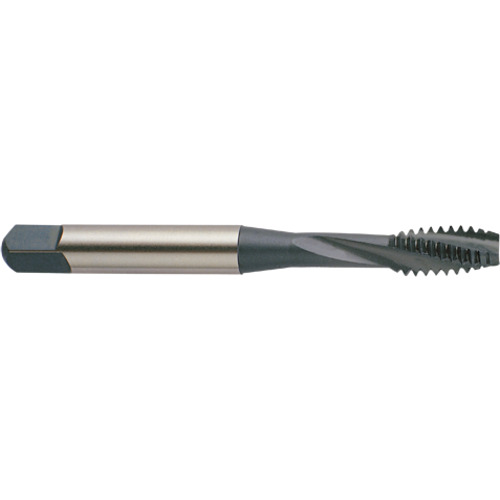

Spiral Flute Tap; 5/16″ - 18 ; 2.72″ OAL ; 3 FL ; P-HSS ; TiN ; H3 ; Series H9
Spiral Flute Tap; 5/16″ - 18 ; 2.72″ OAL ; 3 FL ; HSS ; TiN ; H3 ; Series H9
| Thread Diameter Size (TDZ) | 5/16″ | Chamfer | 2P-3P |
| Threads per Inch (TPI) | 18 | Coating | TiN |
| Thread Standard | UNC | Shank Type | Square |
| Overall Length (OAL) | 2.72″ | End Shape | Modified Bottoming |
| Thread Cutting Part Length (THL) | 0.472″ | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 1.126″ | Length Group | 2.5xD |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Square Size | 0.238″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Tapping Prehole Diameter (Pre-hole) | 0.262″ |
| Thread Tolerance Class (TCTR) | H3 | Series/List # | H9 |
| Standard | 302A | Thread Size | 5/16″ - 18 |
| Tool Type | Spiral Flute Tap |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.75
Package Width
0.625
Package Height
0.5
Package Weight
0.05
