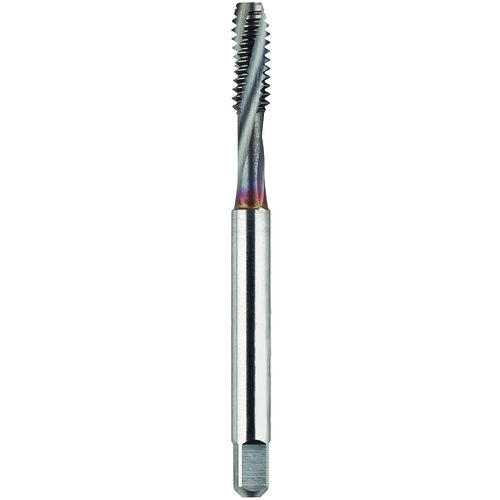

2098C HPT 8-32 SP/FL H3
Spiral Flute Tap; #8 - 32 ; 2-1/8″ OAL ; 2 FL ; HSS-PM ; TiCN ; H3 ; Series 2098C
| Thread Diameter Size (TDZ) | #8 | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 32 | Cutting Edge Material | HSS-PM |
| Thread Standard | NC | Thread Tolerance Class (TCTR) | H3 |
| Overall Length (OAL) | 2-1/8″ | Tool Type | High Performance Tap |
| Thread Cutting Part Length (THL) | 0.2344″ | Chamfer | Semi-Bottoming |
| Usable Length (LU) | 3/4″ | Coating | TiCN |
| Connection Diameter Machine Side (DCONMS) | 0.168″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Measurement Type | Machine Screw |
| Flute Helix Angle (FHA) | 17 Degrees | Series/List # | 2098 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.00000
Package Width
.25000
Package Height
.25000
Package Weight
0.03
