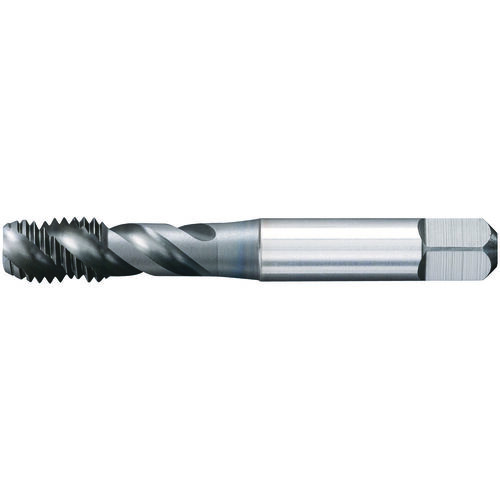

GT305042 3/8-16 2BX RHSF SBOTT
Spiral Flute Tap; 3/8″ - 16 ; 2.94″ OAL ; 3 FL ; HSSCo-PM ; TiCN ; 2BX

Additional Tariff Surcharge of 8.5 %
| Thread Diameter Size (TDZ) | 3/8″ | Cutting Edge Material | HSS-PM |
| Threads per Inch (TPI) | 16 | Thread Tolerance Class (TCTR) | 2BX |
| Thread Standard | UNC | Standard | ANSI |
| Overall Length (OAL) | 2.94″ | Chamfer | 2P-3P |
| Thread Cutting Part Length (THL) | 0.6″ | Coating | TiCN |
| Usable Length (LU) | 1.27″ | Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.381″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Length
3.75000
Package Width
.75000
Package Height
.75000
Package Weight
0.08
