VTSFT9773 5/8-11 2B 3F SEMI-BOTT CH

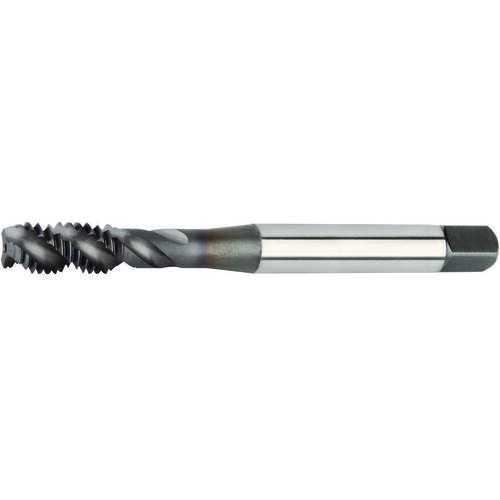

Spiral Flute Tap; 5/8″ - 11 ; 4.33″ OAL ; 3 FL ; Carbide ; TiCN ; 2B
Additional Tariff Surcharge of 8.5 %
| Thread Diameter Size (TDZ) | 5/8″ | Cutting Edge Material | HSSE |
| Threads per Inch (TPI) | 11 | Thread Tolerance Class (TCTR) | 2B |
| Thread Standard | UNC | Standard | ANSI |
| Overall Length (OAL) | 4.33″ | Chamfer | 2P-3P |
| Thread Cutting Part Length (THL) | 0.94″ | Coating | TiCN |
| Usable Length (LU) | 2.01″ | Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.48″ | Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.196
