M8X1.25 D5 3FL MOD-BOTT AL DIN NIT

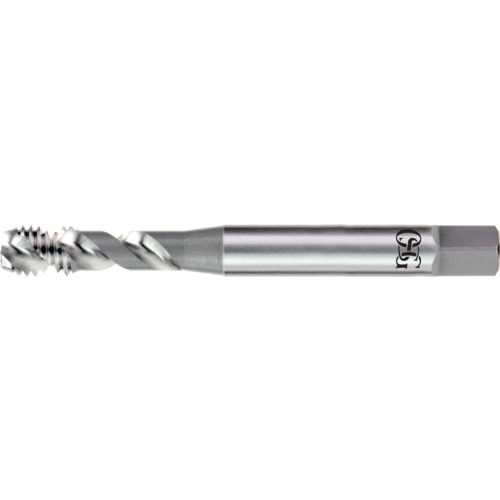

Spiral Flute Tap; M8 × 1.25 mm ; 90 mm OAL ; 3 FL ; HSSCo ; Nitride ; D5 ; Series 13119
| Thread Diameter Size (TDZ) | M8 | Thread Tolerance Class (TCTR) | D5 |
| Thread Pitch (TP) | 1.25 mm | Standard | DIN |
| Thread Standard | Metric | Tool Type | High Performance Tap |
| Overall Length (OAL) | 90 mm | Chamfer | 2.5P-3P |
| Thread Cutting Part Length (THL) | 1-1/8″ | Coating | Nitride |
| Usable Length (LU) | 35 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 8.07 mm | Style | Modified Bottoming |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | HSSCo | Series/List # | 13119 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.45000
Package Width
.50000
Package Height
.45000
Package Weight
0.06
