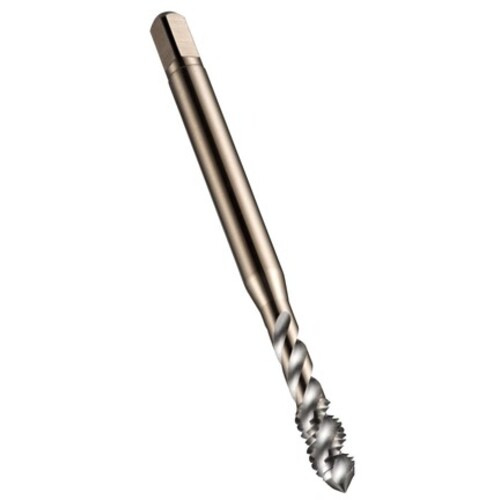

9/16-18 HSS-E PM 3 Flute 3B 45 Degree Machine Tap Spiral Flute-Bright E-code # E0379/16
Spiral Flute Tap; 9/16″ - 18 ; 3-19/32″ OAL ; 3 FL ; HSSE-PM ; Uncoated ; 3B ; Series E037
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 9/16″ | Tool Type | Machine Tap |
| Threads per Inch (TPI) | 18 | Chamfer | 2P-3P |
| Thread Standard | UNF | Coating | Uncoated |
| Overall Length (OAL) | 3-19/32″ | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 0.7087″ | Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.429″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees | Length Group | 2.5xD |
| Applicable Material | | Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Square Size | 0.322″ |
| Cutting Edge Material | HSSE-PM | Measurement Type | Inch |
| Thread Tolerance Class (TCTR) | 3B | Series/List # | E037 |
| Standard | ANSI |
Product Features
| Family Description | E-code # E0379/16 | Country of Origin | Brazil |
Shipping Info
Package Weight
1.733
