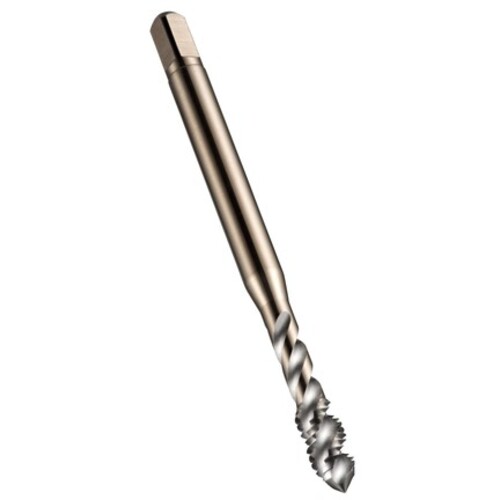

5/8-11 HSS-E PM 3 Flute 3B 45 Degree Machine Tap Spiral Flute-Bright E-code # E0275/8
Spiral Flute Tap; 5/8″ - 11 ; 3-13/16″ OAL ; 3 FL ; HSSE-PM ; Uncoated ; 3B ; Series E027
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 5/8″ | Tool Type | Machine Tap |
| Threads per Inch (TPI) | 11 | Chamfer | 2P-3P |
| Thread Standard | UNC | Coating | Uncoated |
| Overall Length (OAL) | 3-13/16″ | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 0.7087″ | Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.48″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees | Length Group | 2.5xD |
| Applicable Material | | Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Square Size | 0.36″ |
| Cutting Edge Material | HSSE-PM | Measurement Type | Inch |
| Thread Tolerance Class (TCTR) | 3B | Series/List # | E027 |
| Standard | ANSI |
Product Features
| Family Description | E-code # E0275/8 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.184
