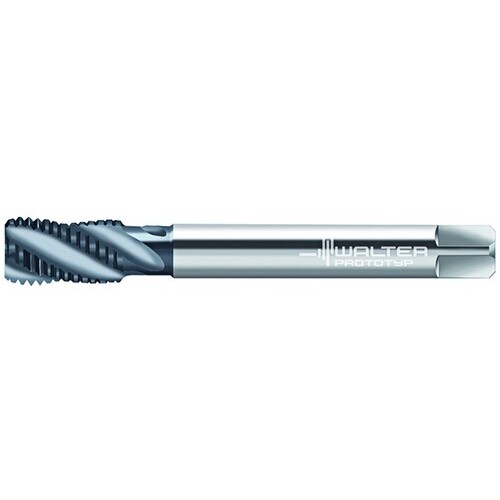

M12x1.75 6HX 4 Flute HSS TiCN Spiral Flute Tap
Spiral Flute Tap; M12 × 1.75 mm ; 111.92 mm OAL ; 4 FL ; HSS ; TiCN ; 6HX
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M12 | Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 1.75 mm | Standard | DIN 376 |
| Thread Standard | Metric | Coating | TiCN |
| Overall Length (OAL) | 111.92 mm | Flute Length | 37 mm |
| Thread Cutting Part Length (THL) | 16 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 9 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|40 Degrees | Measurement Type | Metric |
| Cutting Edge Material | HSS |
Product Features
| Family Description | M2056306-M12 | Country of Origin | Germany |
Shipping Info
Package Weight
0.129
