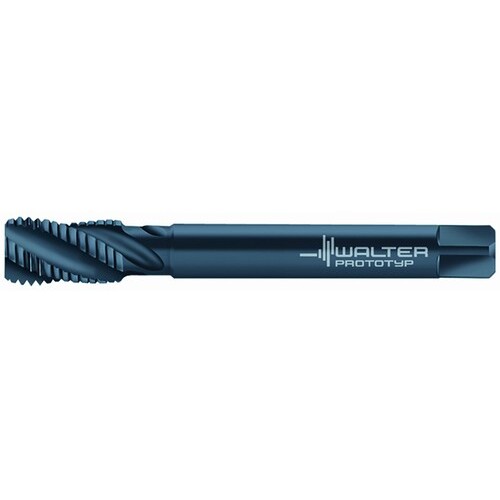

3/4-16 UNF 2B 4 Flute HSS VAP Spiral Flute Tap
Spiral Flute Tap; 3/4″ - 16 ; 4-21/64″ OAL ; 4 FL ; HSS ; 2B
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 3/4″ | Cutting Edge Material | HSS |
| Threads per Inch (TPI) | 16 | Thread Tolerance Class (TCTR) | 2B |
| Thread Standard | NF | Standard | DIN 2184-1 |
| Overall Length (OAL) | 4-21/64″ | Flute Length | 1-27/32″ |
| Thread Cutting Part Length (THL) | 43/64″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.551″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|40 Degrees | Measurement Type | Inch |
Product Features
| Family Description | M23563-UNF3/4 | Country of Origin | Germany |
Shipping Info
Package Weight
0.28
