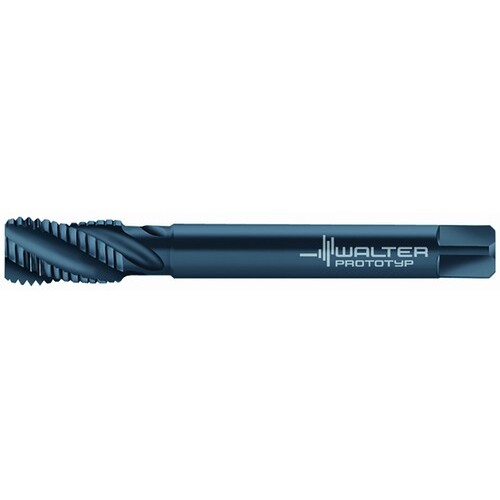

1″-12 UNF 2B 5 Flute HSS VAP Spiral Flute Tap
Spiral Flute Tap; 1″ - 12 ; 5-33/64″ OAL ; 5 FL ; HSS ; 2B
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 1″ | Cutting Edge Material | HSS |
| Threads per Inch (TPI) | 12 | Thread Tolerance Class (TCTR) | 2B |
| Thread Standard | NF | Standard | DIN 2184-1 |
| Overall Length (OAL) | 5-33/64″ | Flute Length | 2-23/64″ |
| Thread Cutting Part Length (THL) | 25/32″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.709″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 5 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|40 Degrees | Measurement Type | Inch |
Product Features
| Family Description | M23563-UNF1 | Country of Origin | Germany |
Shipping Info
Package Weight
0.596
