6714339 TC142-M6X1 6HX WY

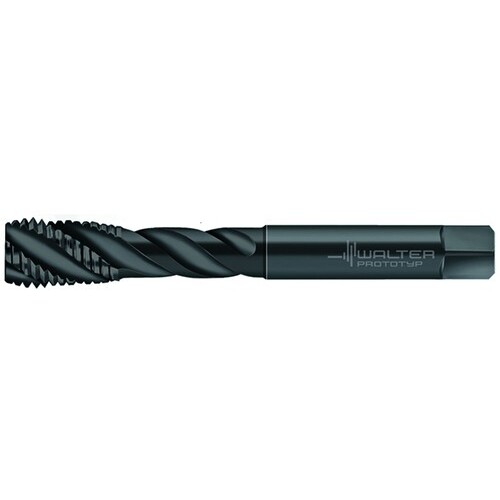

Spiral Flute Tap; M6 × 1 mm ; 81.41 mm OAL ; 3 FL ; HSS ; 6HX ; Series TC142-WY80FC
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M6 | Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 1 mm | Standard | DIN 376 |
| Thread Standard | Metric | Flute Length | 29 mm |
| Overall Length (OAL) | 81.41 mm | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 10 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 4.5 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | CW|50 Degrees | Series/List # | TC142-WY80FC |
| Cutting Edge Material | HSS |
Product Features
| Family Description | TC142-M6-L0 WY80FC | Country of Origin | Germany |
Shipping Info
Package Weight
0.13
