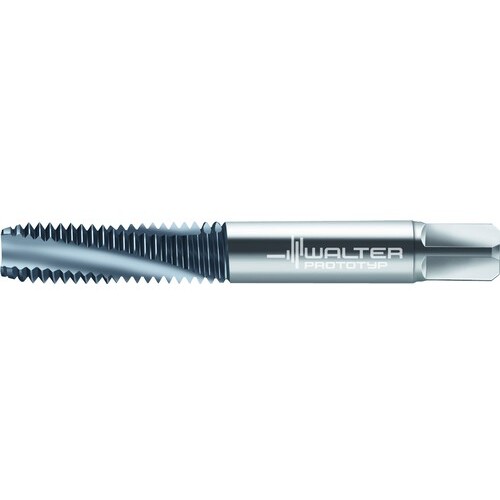

#6-32 UNC 3B 3 Flute HSS Spiral Flute Tap
Spiral Flute Tap; #6 - 32 ; 2-3/64″ OAL ; 3 FL ; HSS ; Uncoated ; 3B
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | #6 | Thread Tolerance Class (TCTR) | 3B |
| Threads per Inch (TPI) | 32 | Standard | ANSI B94.9 |
| Thread Standard | NC | Coating | Uncoated |
| Overall Length (OAL) | 2-3/64″ | Flute Length | 45/64″ |
| Thread Cutting Part Length (THL) | 15/32″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 9/64″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|10 Degrees | Measurement Type | Wire Gauge |
| Cutting Edge Material | HSS |
Product Features
| Family Description | A224101-UNC6 | Country of Origin | Germany |
Shipping Info
Package Weight
0.02
