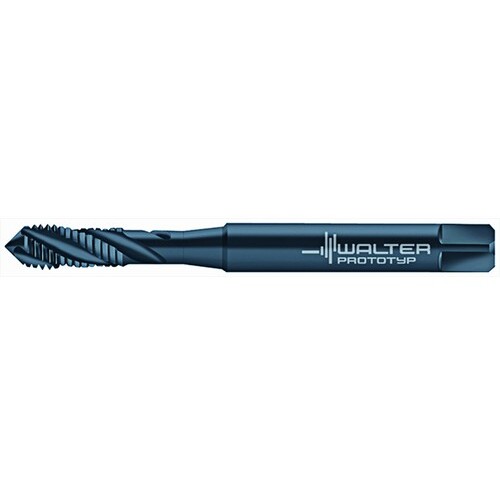

M6x0.75 6HX 3 Flute HSS VAP Spiral Flute Tap
Spiral Flute Tap; M6 × 0.75 mm ; 81.41 mm OAL ; 3 FL ; HSS ; 6HX
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M6 | Cutting Edge Material | HSS |
| Thread Pitch (TP) | 0.75 mm | Thread Tolerance Class (TCTR) | 6HX |
| Thread Standard | Metric | Standard | DIN 371 |
| Overall Length (OAL) | 81.41 mm | Flute Length | 26 mm |
| Thread Cutting Part Length (THL) | 10 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|40 Degrees | Measurement Type | Metric |
Product Features
| Family Description | M21513-M6X0.75 | Country of Origin | Germany |
Shipping Info
Package Weight
0.036
