GT415008 M16X2 6HX STFL SBOTT 376

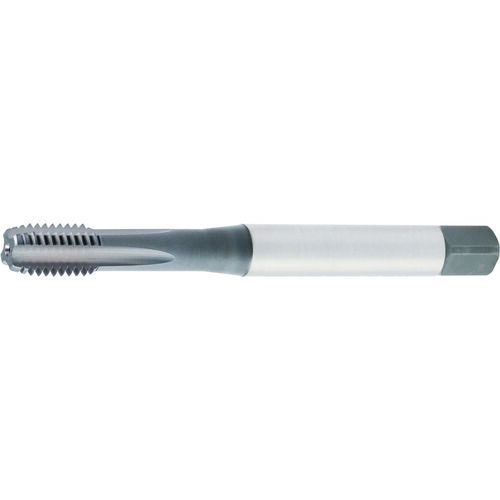

Spiral Flute Tap; M16 × 2 mm ; 110 mm OAL ; 4 FL ; HSSCo-PM ; TiCN ; 6HX
Additional Tariff Surcharge of 8.5 %
| Thread Diameter Size (TDZ) | M16 | Cutting Edge Material | HSS |
| Thread Pitch (TP) | 2 mm | Thread Tolerance Class (TCTR) | 6HX |
| Threads per Inch (TPI) | 12.7 | Standard | DIN 376 |
| Thread Standard | Metric | Chamfer | 2P-3P |
| Overall Length (OAL) | 110 mm | Coating | TiCN |
| Thread Cutting Part Length (THL) | 20 mm | Style | Semi-Bottoming |
| Usable Length (LU) | 51 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.167
