1/4-20 H5 2FL SP FL A

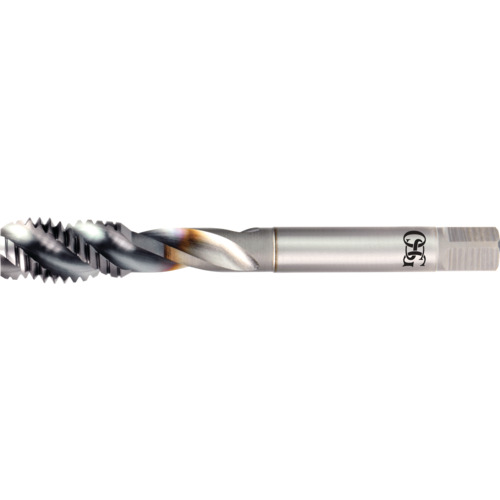

Spiral Flute Tap; 1/4″ - 20 ; 3.14″ OAL ; 2 FL ; HSS-PM ; Vanadium ; H5 ; Series 16505
| Thread Diameter Size (TDZ) | 1/4″ | Thread Tolerance Class (TCTR) | H5 |
| Threads per Inch (TPI) | 20 | Tool Type | High Performance Tap |
| Thread Standard | NC | Chamfer | 2.5P |
| Overall Length (OAL) | 3.14″ | Coating | Vanadium |
| Thread Cutting Part Length (THL) | 0.397″ | Flute Type | Spiral |
| Usable Length (LU) | 1.177″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Style | Modified Bottoming |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | Variable | Series/List # | 16505 |
| Cutting Edge Material | HSS-PM |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.50000
Package Width
.40000
Package Height
.35000
Package Weight
0.055
