9/16-18 H5 3FL SP FL A TAP TICN

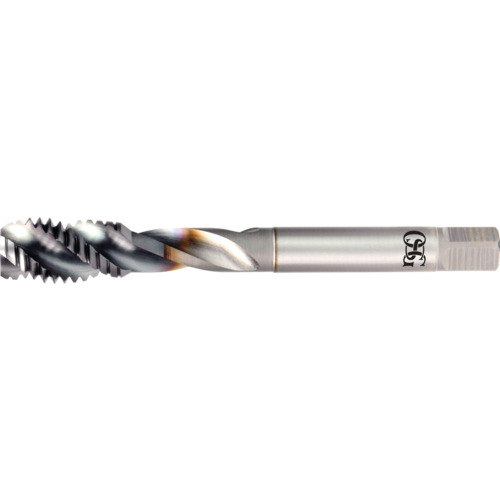

Spiral Flute Tap; 9/16″ - 18 ; 3.93″ OAL ; 3 FL ; HSS-PM ; Vanadium ; H5 ; Series 16505
| Thread Diameter Size (TDZ) | 9/16″ | Thread Tolerance Class (TCTR) | H5 |
| Threads per Inch (TPI) | 18 | Tool Type | High Performance Tap |
| Thread Standard | NF | Chamfer | 2.5P |
| Overall Length (OAL) | 3.93″ | Coating | Vanadium |
| Thread Cutting Part Length (THL) | 0.665″ | Flute Type | Spiral |
| Usable Length (LU) | 1.972″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.429″ | Style | Modified Bottoming |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | Variable | Series/List # | 16505 |
| Cutting Edge Material | HSS-PM |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
5.00000
Package Width
.90000
Package Height
.85000
Package Weight
0.175
