5/8 11 H5 3FX 2.5P CC

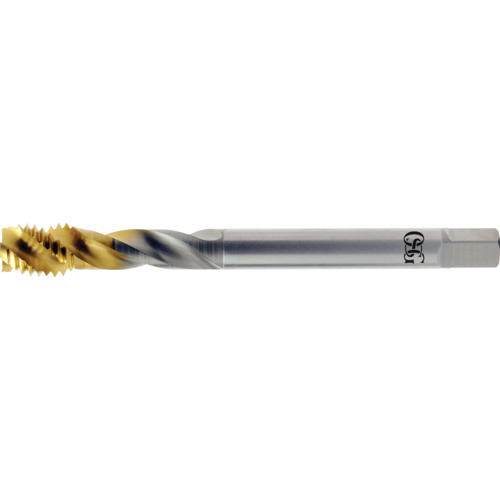

Spiral Flute Tap; 5/8″ - 11 ; 110 mm OAL ; 3 FL ; HSSCo ; TiN ; H5 ; Series 16450

| Thread Diameter Size (TDZ) | 5/8″ | Tool Type | Spiral Flute Tap |
| Threads per Inch (TPI) | 11 | Chamfer | 2.5P-3P |
| Thread Standard | NC | Coating | TiN |
| Overall Length (OAL) | 110 mm | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 1-13/16″ | End Shape | Chamfer |
| Usable Length (LU) | 2.126″ | Style | Spiral Flute |
| Connection Diameter Machine Side (DCONMS) | 0.48″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Cutting Edge Material | HSSCo | Series/List # | 16450 |
| Thread Tolerance Class (TCTR) | H5 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
5.00000
Package Width
.90000
Package Height
.85000
Package Weight
0.195
