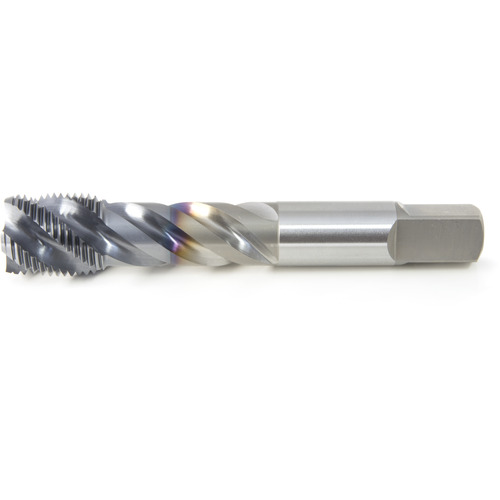

8-32 H5 3FL VA3 TiCN
Spiral Flute Tap; #8 - 32 ; 2-1/8″ OAL ; 3 FL ; HSSCo ; TiCN ; H5 ; Series 303
| Thread Diameter Size (TDZ) | #8 | Thread Tolerance Class (TCTR) | H5 |
| Threads per Inch (TPI) | 32 | Tool Type | High Performance Tap |
| Thread Standard | NC | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 2-1/8″ | Coating | TiCN |
| Thread Cutting Part Length (THL) | 3/4″ | Flute Type | Spiral |
| Usable Length (LU) | 0.752″ | Style | Modified Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.168″ | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 3 | Series/List # | 303 |
| Cutting Edge Material | HSSCo |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
3.00000
Package Width
.45000
Package Height
.40000
Package Weight
0.015
