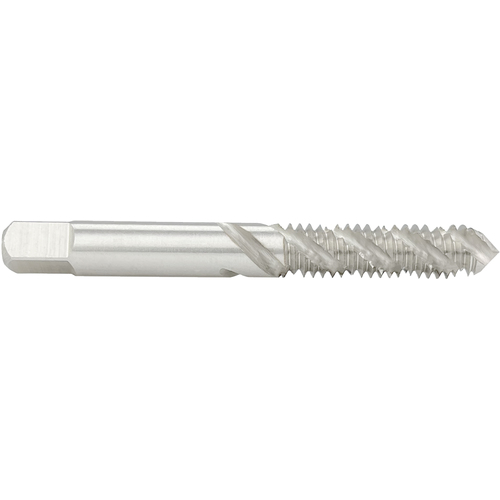

4-40 Dia-Bright HSS-Std Spiral FL Tap
Spiral Flute Tap; #4 - 40 ; 1-7/8″ OAL ; HSS ; Uncoated
| Thread Diameter Size (TDZ) | #4 | Cutting Edge Material | HSS |
| Threads per Inch (TPI) | 40 | Tool Type | General Purpose Tap |
| Thread Standard | NC | Coating | Uncoated |
| Overall Length (OAL) | 1-7/8″ | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 9/16″ | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees |
Product Features
| Remarks | •Spiral Fluted Taps •High Speed Steel Ground Thread •Recommended for use in ductile materials such as Brass, Copper, Aluminum, Magnesium and die cast materials. •Excellent for tapping blind holes where chips are a problem. •These taps propel chips upward, out and away thus producing finer thread quality. • Spiral Flutes will also bridge a keyway or other gap in the hole | Country of Origin | China |
Shipping Info
Package Weight
0.046
