M5X0.8 D4 3FL SP FL A

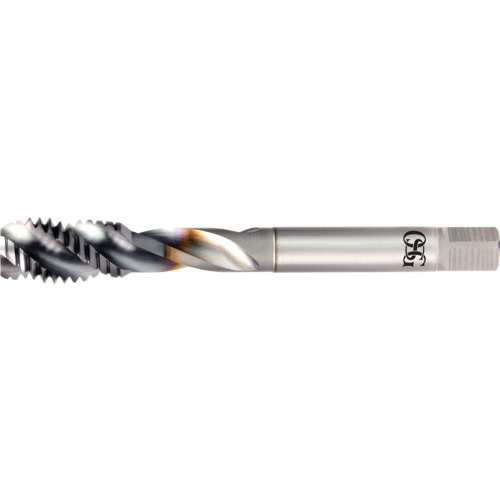

Spiral Flute Tap; M5 × 0.8 mm ; 70 mm OAL ; 3 FL ; HSS-PM ; Vanadium ; D4 ; Series 16500
| Thread Diameter Size (TDZ) | M5 | Thread Tolerance Class (TCTR) | D4 |
| Thread Pitch (TP) | 0.8 mm | Tool Type | High Performance Tap |
| Thread Standard | Metric | Chamfer | 2.5P |
| Overall Length (OAL) | 70 mm | Coating | Vanadium |
| Thread Cutting Part Length (THL) | 6 mm | Flute Type | Spiral |
| Usable Length (LU) | 25.1 mm | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 4.92 mm | Style | Modified Bottoming |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | Variable | Series/List # | 16500 |
| Cutting Edge Material | HSS-PM |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.55000
Package Width
.40000
Package Height
.35000
Package Weight
0.03
