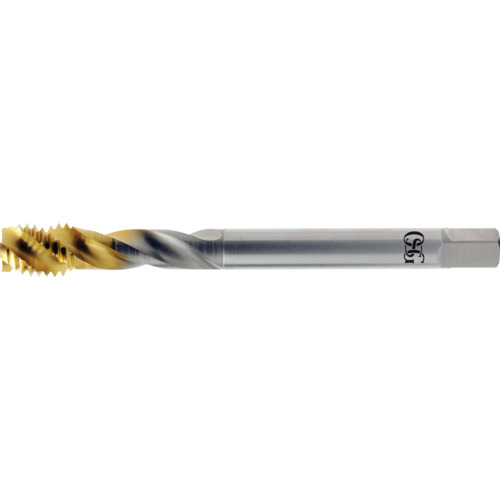

10-32 0 Fl H3 HSSE Spiral Fl Tap- TiN
Spiral Flute Tap; #10 - 32 ; 70 mm OAL ; 2 FL ; HSSCo ; TiN ; H3 ; Series 16450
| Thread Diameter Size (TDZ) | #10 | Tool Type | Spiral Flute Tap |
| Threads per Inch (TPI) | 32 | Chamfer | 2.5P-3P |
| Thread Standard | NF | Coating | TiN |
| Overall Length (OAL) | 70 mm | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 7/8″ | End Shape | Chamfer |
| Usable Length (LU) | 0.976″ | Style | Spiral Flute |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Measurement Type | Wire Gauge |
| Cutting Edge Material | HSSCo | Series/List # | 16450 |
| Thread Tolerance Class (TCTR) | H3 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.60000
Package Width
.40000
Package Height
.35000
Package Weight
0.025
