3/8-16 H5 3RX SEMI BOTT VC10NI S/O

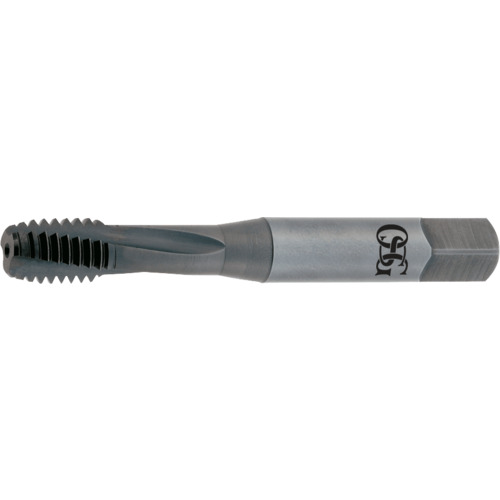

Spiral Flute Tap; 3/8″ - 16 ; 2-23/32″ OAL ; 3 FL ; HSS-PM ; Black Oxide ; H5 ; Series 313NI
| Thread Diameter Size (TDZ) | 3/8″ | Thread Tolerance Class (TCTR) | H5 |
| Threads per Inch (TPI) | 16 | Tool Type | High Performance Tap |
| Thread Standard | NC | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 2-23/32″ | Coating | Black Oxide |
| Thread Cutting Part Length (THL) | 1-1/8″ | Flute Type | Spiral |
| Usable Length (LU) | 1.252″ | Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.381″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 313NI |
| Cutting Edge Material | HSS-PM |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.65000
Package Width
.60000
Package Height
.60000
Package Weight
0.09
