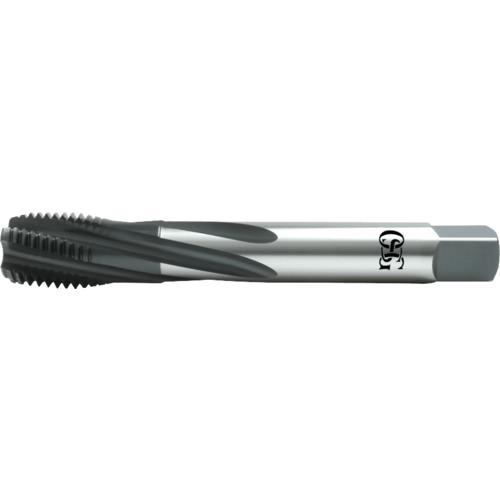

M24 3.0 Dia.-6H-5 FL - HSSE - Steam Oxide - Modified Bottoming - Spiral Flute Tap
Spiral Flute Tap; M24 × 3 mm ; 160 mm OAL ; 5 FL ; HSSCo ; Black Oxide ; 6H ; Series 13116

| Thread Diameter Size (TDZ) | M24 | Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 3 mm | Tool Type | High Performance Tap |
| Thread Standard | Metric | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 160 mm | Coating | Black Oxide |
| Thread Cutting Part Length (THL) | 2-7/32″ | Flute Type | Spiral |
| Usable Length (LU) | 88 mm | Style | Modified Bottoming |
| Connection Diameter Machine Side (DCONMS) | 19.3 mm | Measurement Type | Metric |
| Flute Count (NOF) | 5 | Series/List # | 13116 |
| Cutting Edge Material | HSSCo |
Product Features
| Country of Origin | Japan |
