5/16-18 H3 3RX SEM BOTT EXOTAP VC10

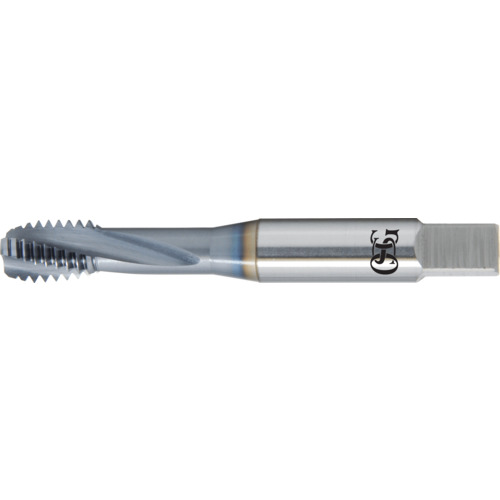

Spiral Flute Tap; 5/16″ - 18 ; 2-23/32″ OAL ; 3 FL ; HSS-PM ; TiCN ; H3 ; Series 313

| Thread Diameter Size (TDZ) | 5/16″ | Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 18 | Tool Type | High Performance Tap |
| Thread Standard | NC | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 2-23/32″ | Coating | TiCN |
| Thread Cutting Part Length (THL) | 1-1/8″ | Flute Type | Spiral |
| Usable Length (LU) | 1.126″ | Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 313 |
| Cutting Edge Material | HSS-PM |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
3.60000
Package Width
.45000
Package Height
.45000
Package Weight
0.05
