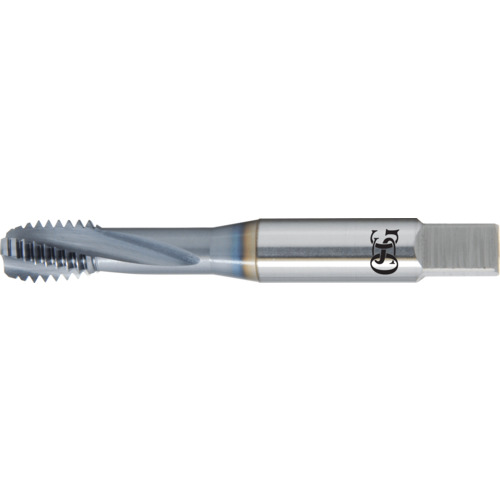

6-32 H5 2RX SEMI-BOT VC10 TICN
Spiral Flute Tap; #6 - 32 ; 2″ OAL ; 2 FL ; HSS-PM ; TiCN ; H5 ; Series 313

| Thread Diameter Size (TDZ) | #6 | Thread Tolerance Class (TCTR) | H5 |
| Threads per Inch (TPI) | 32 | Tool Type | High Performance Tap |
| Thread Standard | NC | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 2″ | Coating | TiCN |
| Thread Cutting Part Length (THL) | 11/16″ | Flute Type | Spiral |
| Usable Length (LU) | 0.685″ | Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 2 | Series/List # | 313 |
| Cutting Edge Material | HSS-PM |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
0.01
