5/16-24 H4 3FL SP FL A

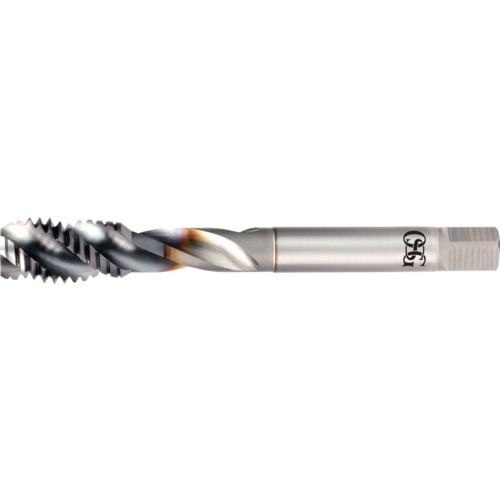

Spiral Flute Tap; 5/16″ - 24 ; 3.54″ OAL ; 3 FL ; HSS-PM ; Vanadium ; H4 ; Series 16505
| Thread Diameter Size (TDZ) | 5/16″ | Thread Tolerance Class (TCTR) | H4 |
| Threads per Inch (TPI) | 24 | Tool Type | High Performance Tap |
| Thread Standard | NF | Chamfer | 2.5P |
| Overall Length (OAL) | 3.54″ | Coating | Vanadium |
| Thread Cutting Part Length (THL) | 0.444″ | Flute Type | Spiral |
| Usable Length (LU) | 1.377″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.317″ | Style | Modified Bottoming |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | Variable | Series/List # | 16505 |
| Cutting Edge Material | HSS-PM |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.50000
Package Width
.53000
Package Height
.42000
Package Weight
0.05
