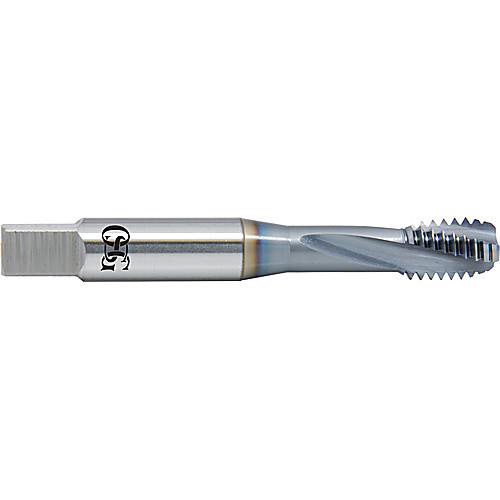

1/4-28 Dia. - H3-3 FL - VC10 - TiCN - Bottoming - Spiral Flute Tap
Spiral Flute Tap; 1/4″ - 28 ; 2-1/2″ OAL ; 3 FL ; HSS-PM ; TiCN ; H3 ; Series 313
| Thread Diameter Size (TDZ) | 1/4″ | Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 28 | Tool Type | High Performance Tap |
| Thread Standard | NF | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 2-1/2″ | Coating | TiCN |
| Thread Cutting Part Length (THL) | 1″ | Flute Type | Spiral |
| Usable Length (LU) | 0.996″ | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 313 |
| Cutting Edge Material | HSS-PM |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.35000
Package Weight
0.026
