10-32 H3 3FL VA3 TiCN

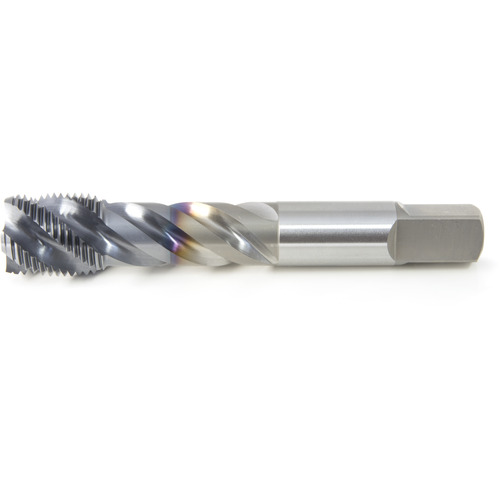

Spiral Flute Tap; #10 - 32 ; 2-3/8″ OAL ; 3 FL ; HSSCo ; TiCN ; H3 ; Series 303
| Thread Diameter Size (TDZ) | #10 | Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 32 | Tool Type | High Performance Tap |
| Thread Standard | NF | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 2-3/8″ | Coating | TiCN |
| Thread Cutting Part Length (THL) | 7/8″ | Flute Type | Spiral |
| Usable Length (LU) | 0.866″ | Style | Modified Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 3 | Series/List # | 303 |
| Cutting Edge Material | HSSCo |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.30000
Package Weight
0.02
