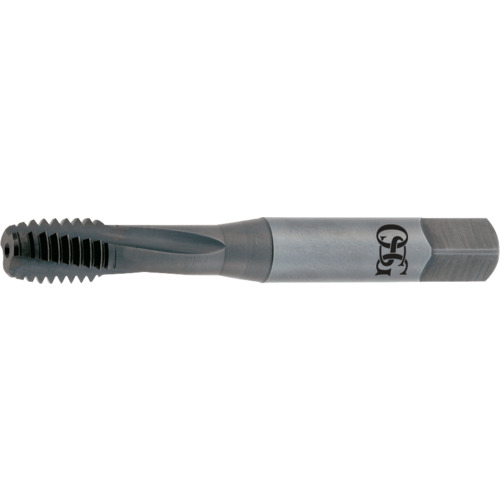

M4 0.7 Dia. - D4-3 FL - VC10 - Steam Oxide - Modified Bottoming - Spiral Flute Tap
Spiral Flute Tap; M4 × 0.7 mm ; 2-1/8″ OAL ; 3 FL ; HSS-PM ; Black Oxide ; D4 ; Series 345NI
| Thread Diameter Size (TDZ) | M4 | Thread Tolerance Class (TCTR) | D4 |
| Thread Pitch (TP) | 0.7 mm | Tool Type | High Performance Tap |
| Thread Standard | Metric | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 2-1/8″ | Coating | Black Oxide |
| Thread Cutting Part Length (THL) | 3/4″ | Flute Type | Spiral |
| Usable Length (LU) | 26 mm | Style | Modified Bottoming |
| Connection Diameter Machine Side (DCONMS) | 4.26 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Series/List # | 345NI |
| Cutting Edge Material | HSS-PM |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
0.005
