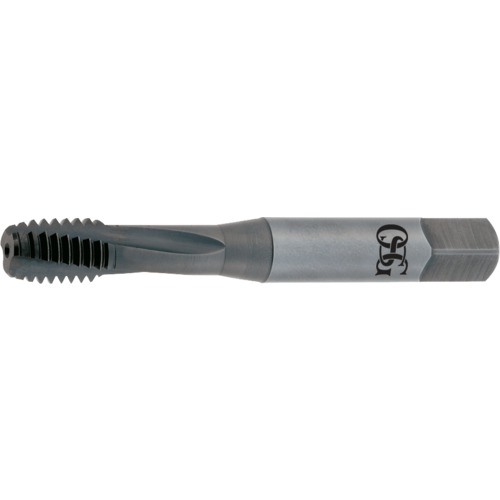

2-56 H2-2FL-VC10Ni-Steam Oxide-Semi Bottoming-Spiral Flute Tap
Spiral Flute Tap; #2 - 56 ; 1-3/4″ OAL ; 2 FL ; HSS-PM ; Black Oxide ; H2 ; Series 313NI
| Thread Diameter Size (TDZ) | #2 | Thread Tolerance Class (TCTR) | H2 |
| Threads per Inch (TPI) | 56 | Tool Type | High Performance Tap |
| Thread Standard | NC | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 1-3/4″ | Coating | Black Oxide |
| Thread Cutting Part Length (THL) | 7/16″ | Flute Type | Spiral |
| Usable Length (LU) | 3.011″ | Style | Spiral Flute |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 2 | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSS-PM | Series/List # | 313NI |
Product Features
| Remarks | •High Performance Spiral Fluted tap for Nickel Based Alloys •VC-10 Premium Powered High Speed Steel •Steam Oxide Finish Shown, TiCN Coating available •Modified Bottom Chamfer | Country of Origin | Japan |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
0.01
