1/4-28 H3 3FL HS SP FL

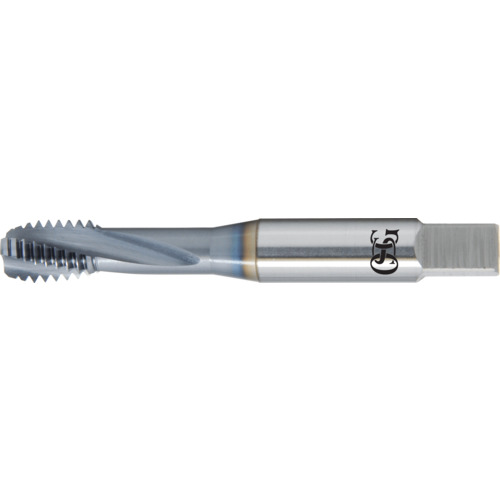

Spiral Flute Tap; 1/4″ - 28 ; 2-1/2″ OAL ; 3 FL ; HSS-PM ; Black Oxide ; H3 ; Series 313
| Thread Diameter Size (TDZ) | 1/4″ | Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 28 | Tool Type | High Performance Tap |
| Thread Standard | NF | Chamfer | 2.5P |
| Overall Length (OAL) | 2-1/2″ | Coating | Black Oxide |
| Thread Cutting Part Length (THL) | 1″ | Flute Type | Spiral |
| Usable Length (LU) | 0.996″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Style | Bottoming |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Applicable Material | | Hard Materials | | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSS-PM | Series/List # | 313 |
Product Features
| Remarks | •EXOTAP VC-10, specially designed for difficult-to-machine materials best performance; 400, 17–4 PH stainless steels, hardened steels •Specially Designed for Difficult-To-Machine Materials •Steam Oxide Finish Shown •VC10 and VA3 Taps Available TiCN •400, 17–4 PH Stainless Steels •Hardened Steels | Country of Origin | Brazil |
Shipping Info
Package Length
2.90000
Package Width
.30000
Package Height
.30000
Package Weight
0.025
