3/8-24 H3 3FL HS SP FL

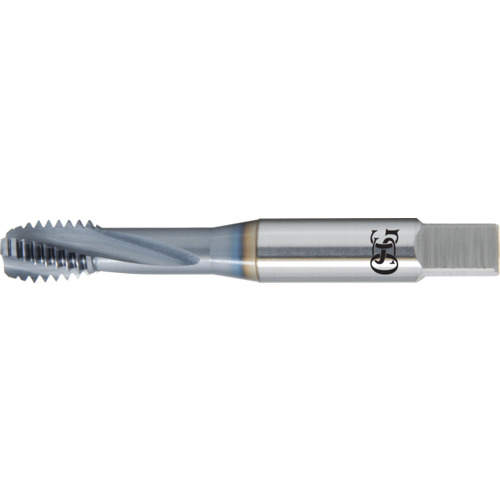

Spiral Flute Tap; 3/8″ - 24 ; 2-15/16″ OAL ; 3 FL ; HSS-PM ; Black Oxide ; H3 ; Series 313

| Thread Diameter Size (TDZ) | 3/8″ | Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 24 | Tool Type | High Performance Tap |
| Thread Standard | NF | Chamfer | 2.5P |
| Overall Length (OAL) | 2-15/16″ | Coating | Black Oxide |
| Thread Cutting Part Length (THL) | 1-1/4″ | Flute Type | Spiral |
| Usable Length (LU) | 1.252″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.381″ | Style | Bottoming |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Applicable Material | | Hard Materials | | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSS-PM | Series/List # | 313 |
Product Features
| Remarks | •EXOTAP VC-10, specially designed for difficult-to-machine materials best performance; 400, 17–4 PH stainless steels, hardened steels
•Specially Designed for Difficult-To-Machine Materials
•Steam Oxide Finish Shown
•VC10 and VA3 Taps Available TiCN
•400, 17–4 PH Stainless Steels
•Hardened Steels | Country of Origin | Brazil |
Shipping Info
Package Length
3.65000
Package Width
.60000
Package Height
.55000
Package Weight
0.08
