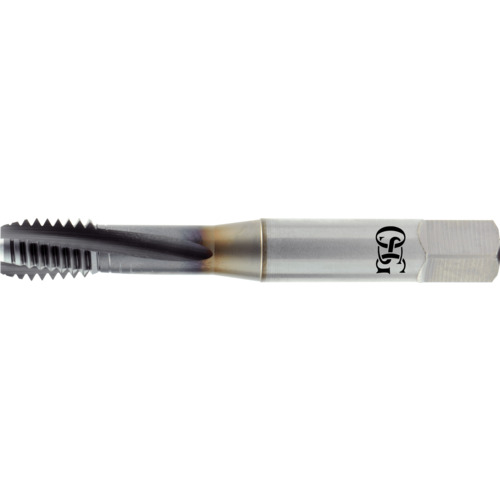

1/4-20 H3 3Fl HS SP TICN
Spiral Flute Tap; 1/4″ - 20 ; 2.57″ OAL ; 3 FL ; HSS-PM ; TiCN ; H3 ; Series 313TI
| Thread Diameter Size (TDZ) | 1/4″ | Chamfer | 2.5P-3P |
| Threads per Inch (TPI) | 20 | Coating | TiCN |
| Thread Standard | NC | Flute Type | Spiral |
| Overall Length (OAL) | 2.57″ | End Shape | Chamfer |
| Thread Cutting Part Length (THL) | 0.996″ | Style | Modified Bottoming |
| Usable Length (LU) | 0.996″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Square Size | 0.190″ |
| Applicable Material | | Super-Alloys / Titanium | | Measurement Type | Inch |
| Cutting Edge Material | HSS-PM | ToolTypeName | Spiral Flute Taps |
| Thread Tolerance Class (TCTR) | H3 | Series/List # | 313TI |
| Tool Type | High Performance Tap |
Product Features
| Remarks | •List 3121Ti-vc,EXOTAP VC–10TI, spiral flute •High Performance Tap For Titanium Alloys •Available TiCN Finish Only •6Al4V Titanium •Hardened Steel up to 35 HRC | Country of Origin | Japan |
Shipping Info
Package Length
2.60000
Package Width
.20000
Package Height
.20000
Package Weight
0.05
