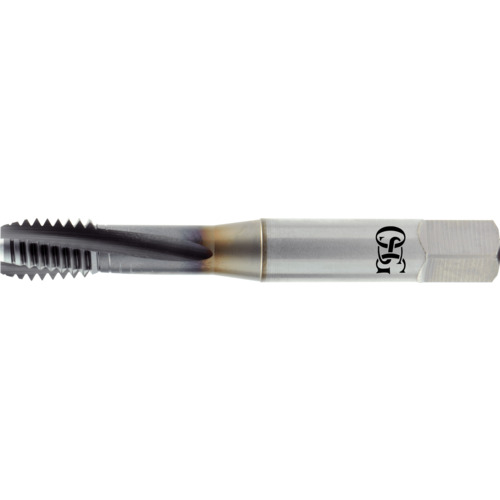

3/8-24 H3-3FL-VC10 TiCN-Spiral Flute Tap
Spiral Flute Tap; 3/8″ - 24 ; 2.93″ OAL ; 3 FL ; HSS-PM ; TiCN ; H3 ; Series 313TI
| Thread Diameter Size (TDZ) | 3/8″ | Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 24 | Tool Type | High Performance Tap |
| Thread Standard | NF | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 2.93″ | Coating | TiCN |
| Thread Cutting Part Length (THL) | 1-1/4″ | Flute Type | Spiral |
| Usable Length (LU) | 1.251″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.38″ | Style | Modified Bottoming |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Applicable Material | | Super-Alloys / Titanium | | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSS-PM | Series/List # | 313TI |
Product Features
| Remarks | •List 3121Ti-vc,EXOTAP VC–10TI, spiral flute •High Performance Tap For Titanium Alloys •Available TiCN Finish Only •6Al4V Titanium •Hardened Steel up to 35 HRC | Country of Origin | Japan |
Shipping Info
Package Length
3.60000
Package Width
.60000
Package Height
.60000
Package Weight
0.08
